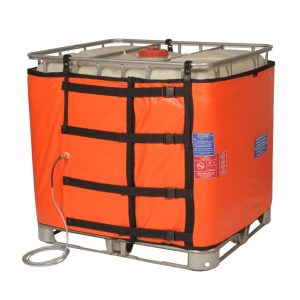

Inteliheat ATEX / IECEx Heating Jackets

Tried and tested in some of the most demanding environments around the world, our range of Hazardous Location Heating Jackets simply wrap around the vessel, clip together and heat the contents to the required temperature.

• Suitable for use in gas and dust hazardous areas (Zones 1, 2, 21 & 22).
• Freeze protection and higher power options.
• Self-limiting and temperature-controlled designs.
• Very easy to install thanks to the super-flexible construction.
• High-grade thermal insulation to reduce heat-loss and increase efficiency while providing protection for the operator.
• Delivers even heat over a large surface area, minimizing the possibilities of damaging the product.
• Fitted with adjustable retaining straps and quick release buckles.
• Ideal for wide variety of plastic and metal containers – drums, cylinders, IBCs, etc.
• Fit and forget – no regular maintenance required.
• Safe to use 24/7.
• Available in custom sizes.

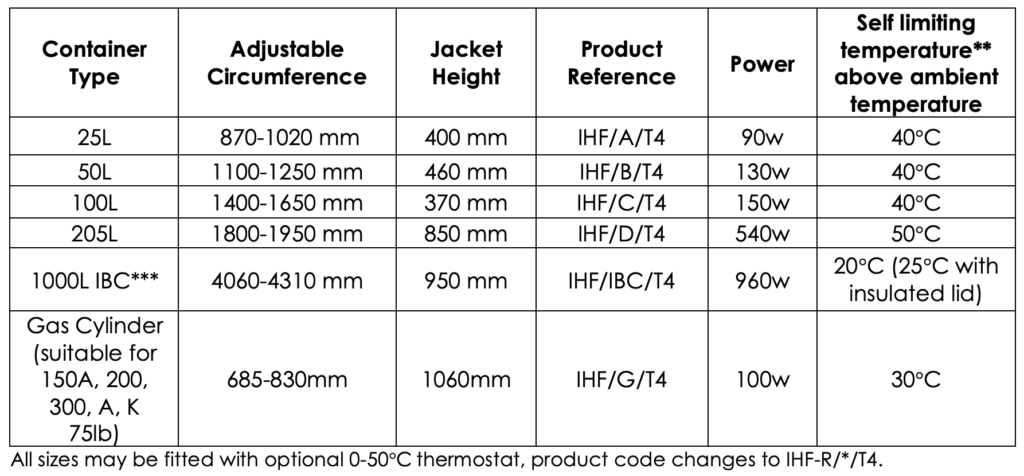

Inteliheat Flexiplus Standard T4 Jacket range (IHF/*/T4)

• Ideal for gentle warming, to reduce viscosity and avoid winter freezing.
• Cost effective alternative when faster heating times are not required.
• No thermostat required. Will maintain a certain temperature above ambient. See following table for more information.
• 0-50°C thermostat can be added during manufacturing to reduce maximum temperature.

*   Size of heating jacket
** IHF/*/T4 standard products are able to maintain a set temperature above the ambient temperature. E.g. The 25L heating jacket will heat to 40°C above the ambient when operated at 240v. With a 20°C ambient temperature, the container wall temperature will be around 60°C
*** 1000L IBC standard heating jacket only for use with metal framed HDPE plastic liner IBCs. Not to be used with SX (metal frame, metal jacket) IBCs. SX and other styles / sizes of IBC can be catered for with our custom heating jackets

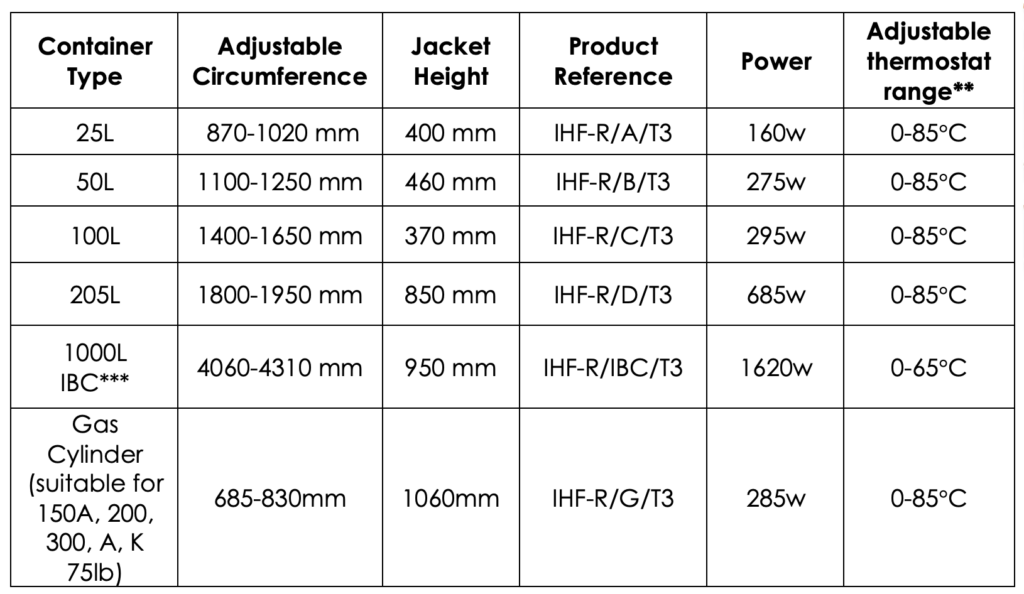

Inteliheat Flexiplus Standard T3 Jacket range (IHF-R/*/T3)

• Ideal for faster heating to higher temperatures.
• Fitted with adjustable thermostat as standard.
• Jackets only to be used with standard sized containers/cylinders – custom designs available for other sizes.

*    Size of heating jacket
**  Range assumes an ambient temperature of 20°C. Lower ambient temperatures may reduce the maximum temperature achievable.
*** 1000L IBC standard heating jacket only for use with metal framed HDPE plastic liner IBCs. Not to be used with SX (metal frame, metal jacket) IBCs. SX and other styles / sizes of IBC can be catered for with our custom heating jackets
